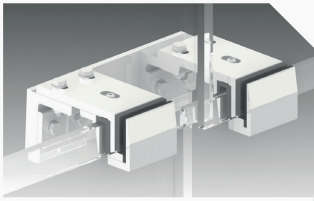

Fixed Louvre Bracket (AL WALL)

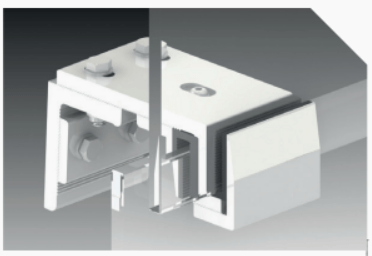

AL-WALL

Glass thickness: 8 - 19 mm Glass size: Approx. 2200 x 1200 mm* Finish: Aluminium anodised EV1 RAL colours

  • Horizontally imbricated

  • No cutouts necessary

  • Driving rain proof

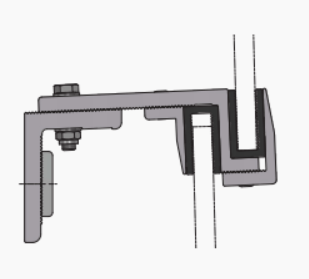

AL-WALL DS

Glass thickness: 6 - 16 mm Glass size: approx. 2200 x 1200 mm* Finish: aluminium anodised EV1 RAL colours

  • Horizontally and vertically imbricated

  • Parallel or laterally sloped imbrication

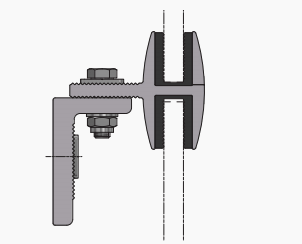

AL-WALL LIGHT

Glass thickness: 6 mm, 8 mm Glass size: 1200 x 1000 mm* - 4 retainers 2400 x 750 mm* - 6 retainers Finish: Aluminium anodised EV1 RAL colours

  • Horizontally imbricated

  • Effortless and quick installation

  • Simple substructure

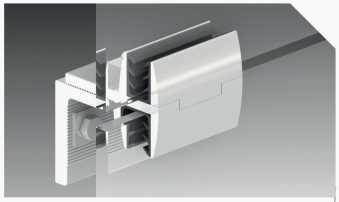

AL-WALL FLAT

Single retainer with standard basic angle for toughened glass and laminated safety glass 8 mm, 10 mm, 12 mm, 16 mm Glass size: 1900 x 1200 mm*** - 4 retainers 3000 x 1200 mm*** - 6 retainers Finishes: Aluminium anodised EV1 or RAL colours

  • For plane facades

  • Safe glass installation without tools

  • Minimum clearance from 8 mm on

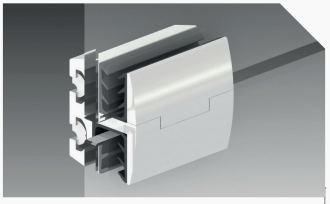

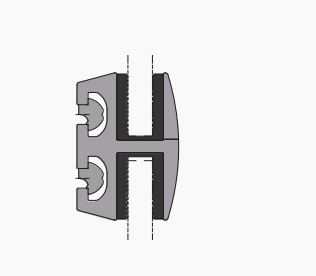

AL-WALL LORS

Retainer with sliding blocks for toughened glass and laminated safety glass 8 mm, 10 mm, 12 mm, 16 mm Glass size: 1900 x 1200 mm*** - 4 retainers 3000 x 1200 mm*** - 6 retainer Finishes: Aluminium anodised EV1 or RAL colours

  • For plane facades

  • Low structural depth

  • Safe glass installation without tools

Imbricated facades. The perfect combination of transparency and functionality.

All advantages at a glance:

  • Backlit Elements

  • Translucent Transparent

  • Translucent Transparent

  • High Quality Facade Design

  • Decorative Ventilated Facade

  • 100% Weather Protection

  • Protective Glass Skin

AL-WALL applications:

  • Portico glazing

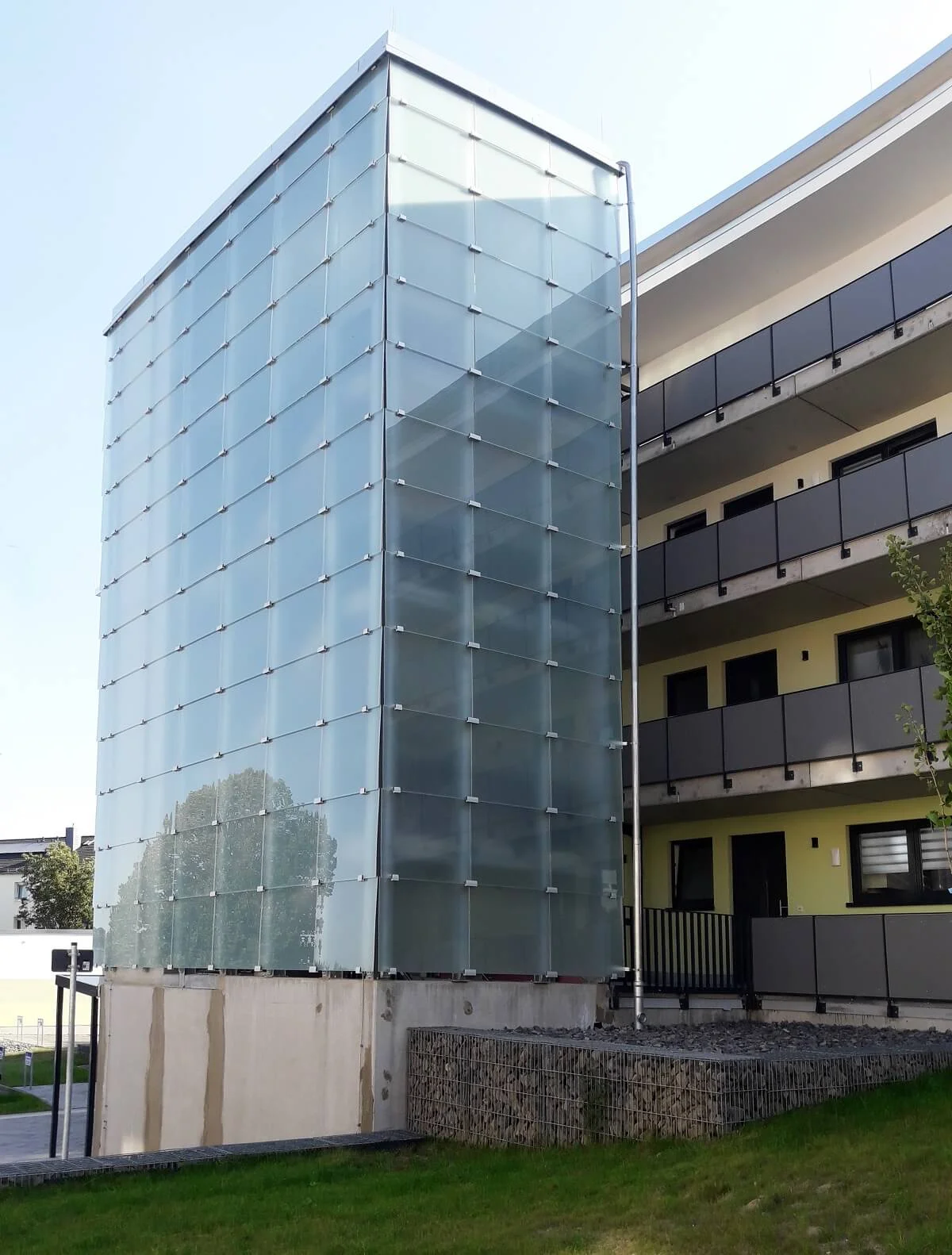

  • Stairwell and lift glazings

  • Second-skin facades

  • For commercial and industrial buildings

  • For apartment buildings

  • Photovoltaic facades

  • Facing for timber facades

  • Screened walls and noise proof walls

  • Facade renovations

CUSTOMIZED SOLUTIONS Unusual plans require special ideas. We develop tailor-made solutions for our proven systems. Supported by Längle‘s decades of expertise and experience with countless projects around the globe.

BACKLIT ELEMENTS TRANSLUCENT TRANSPARENT FACADE REDESIGN HIGH QUALITY FACADE DESIGN DECORATIVE VENTILATED FACADE 100% WEATHER PROTECTION PROTECTIVE GLASS SKIN
