GG OL

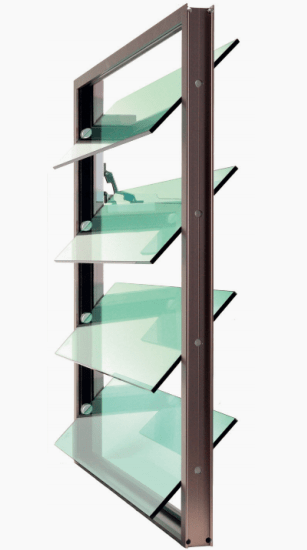

Introducing the Aeras GG OL louvre window, a non-insulating system designed for 6, 8, 10 or 12mm single glass. With its special filigree holding elements and scale-like overlapping of the glass edges, it’s particularly well-suited as a second skin. The point-fixed glass panes deliver impressive all-glass optics.

construction description

  • Frame Made of non-insulated, extruded aluminum profiles Wings made of point-fixed all-glass panes

  • Wings made of point-fixed-all-glass panes

  • Overlapping horizontal glass edge

  • Louvre windows consist of one or more louvers lying on top of the other, which open as pivoting sashes via a horizontal axis of rotation. The part of the wing below the axis of rotation opens outwards and the part above it opens inwards. As a rule, the axis of rotation is in the middle of the slat height; can also be offset up to 1/3 –  2/3 after technical clarification(automated application only)

  • Standard with 78°(Bt50)/ 64°(Bt60) opening angle,
    if required also from 0° – 90°

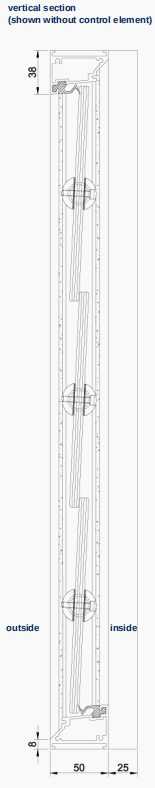

profile dimensions

  • Frame depth: 50 mm or 60mm(Dependent on application requirement)

  • Frame view width: 38 mm

seals

  • Laterally with felt and brush seal

  • Silicone frame seal

fittings

  • Fittings are concealed

  • Made of corrosion-free Materials or galvanized

Possible operations

Manually

  • Hand lever
  • Articulated crank rod

Motoric

  • 230V – AC
  • 24 VDC

Pneumatic

  • Pneumatic cylinder PUDV ( approved for NSHEV)

surfaces

  • Profiles anodised, powder or wet paint coated in RAL, NCS, DB or special colour

areas of application

  • For ventilation

  • As NSHEV according to DIN EN 12101-2

  • For installation in vertical facade

  • Especially for use as a second skin and curtain wall (further applications after technical clarification)

Possible sizes

  • Minimum frame width: 300 mm

  • Maximum frame width: 1800 mm

  • As NSHEV up to 1400 mm (winder elements only with division by middle post)
  • Slat height variable: 120 mm to 300 mm

SPECIFICATIONS

MODEL

GG BE, GG ST, GG OL

Profiles

Frame

Blade Holder

Non Thermally Broken Aluminium

Non Thermally Broken Aluminium

Dimensions

Frame Width

Frame Height

Louvre Blade Height

min. 300mm up to 1800mm

min. 300mm up to any height

min. 120mm up to 400mm

Glazing

Glazing Type

Makeup

Single Glazing

Up to 17.52mm

Finish

Powdercoated

Operation

Centre Pivot

24V Electric or Manual Operation

CERTIFICATION

AS2047

Water Penetration Test

U-value

SHGC

Acoustics

NPD*

Subject to Glass Make-Up

Subject to Glass Make-Up

Subject to Glass Make-Up

*No performance data available
