GG ST

Construction description

  • Installation in vertical façade. The system is suitable for use as second skin and curtain façade.

  • Frame made of non-insulated, extruded aluminum profiles

  • Blades made of point-fixed all-glass panes

  • 2 mm distance between glass edges horizontally in closed position

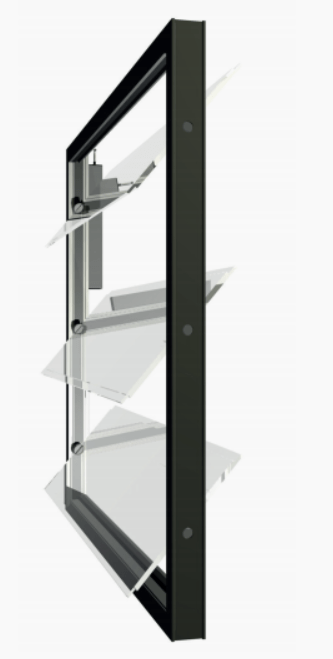

  • Louvre windows consist of one or several superimposed blades that open on a horizontal axis of rotation as an oscillating wing. Thereby the blades part below the pivot axis opens to the outside and the upper part to the inside. In general the pivot axis is centre mounted, but can be shifted up to 1/3 – 2/3 if necessary.

  • Standard with 78°(Bt50)/ 64°(Bt60) opening angle,
    if required also from 0° – 90°

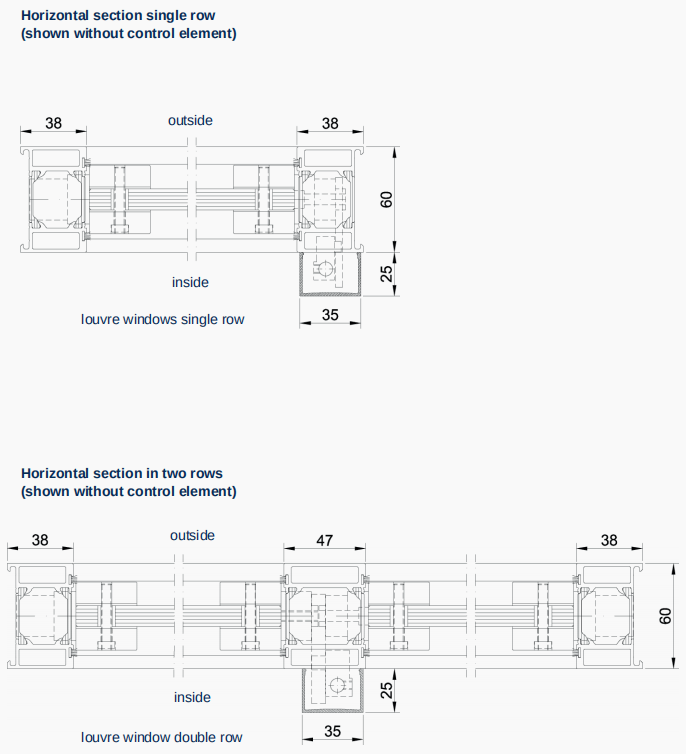

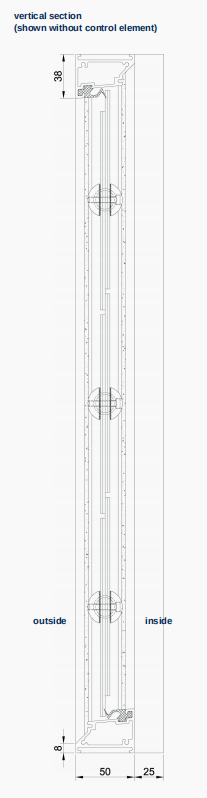

profile dimensions

  • Frame depth: 50 mm or 60mm(Dependent on application requirement)

  • Frame view width: 38 mm

Gaskets

  • Vertically with felt seal and brush seal

  • Frame sealed with silicone

fittings

  • Fittings are concealed

  • Made of corrosion-free Materials or galvanized

Possible operations

Manually

  • Hand lever
  • Articulated crank rod

Motoric

  • 230V – AC
  • 24 V – DC (approved for NSHEV)

Pneumatic

  • Pneumatic cylinder (approved for NSHEV)

surfaces

  • Profiles anodized, powder or wet paint coated possible ac cording to RAL, NCS, DB. Special colors possible.

areas of application

  • For ventilation

  • As NSHEV according to DIN EN 12101-2

  • Especially for use as a second skin and curtain wall (further applications after technical clarification)

Possible sizes

  • Minimum frame width: 300 mm

  • Maximum frame width: 1800 mm

  • Blade height variable: 120 mm to 300 mm

SPECIFICATIONS

MODEL

GG BE, GG ST, GG OL

Profiles

Frame

Blade Holder

Non Thermally Broken Aluminium

Non Thermally Broken Aluminium

Dimensions

Frame Width

Frame Height

Louvre Blade Height

min. 300mm up to 1800mm

min. 300mm up to any height

min. 120mm up to 400mm

Glazing

Glazing Type

Makeup

Single Glazing

Up to 17.52mm

Finish

Powdercoated

Operation

Centre Pivot

24V Electric or Manual Operation

CERTIFICATION

AS2047

Water Penetration Test

U-value

SHGC

Acoustics

NPD*

Subject to Glass Make-Up

Subject to Glass Make-Up

Subject to Glass Make-Up

*No performance data available
